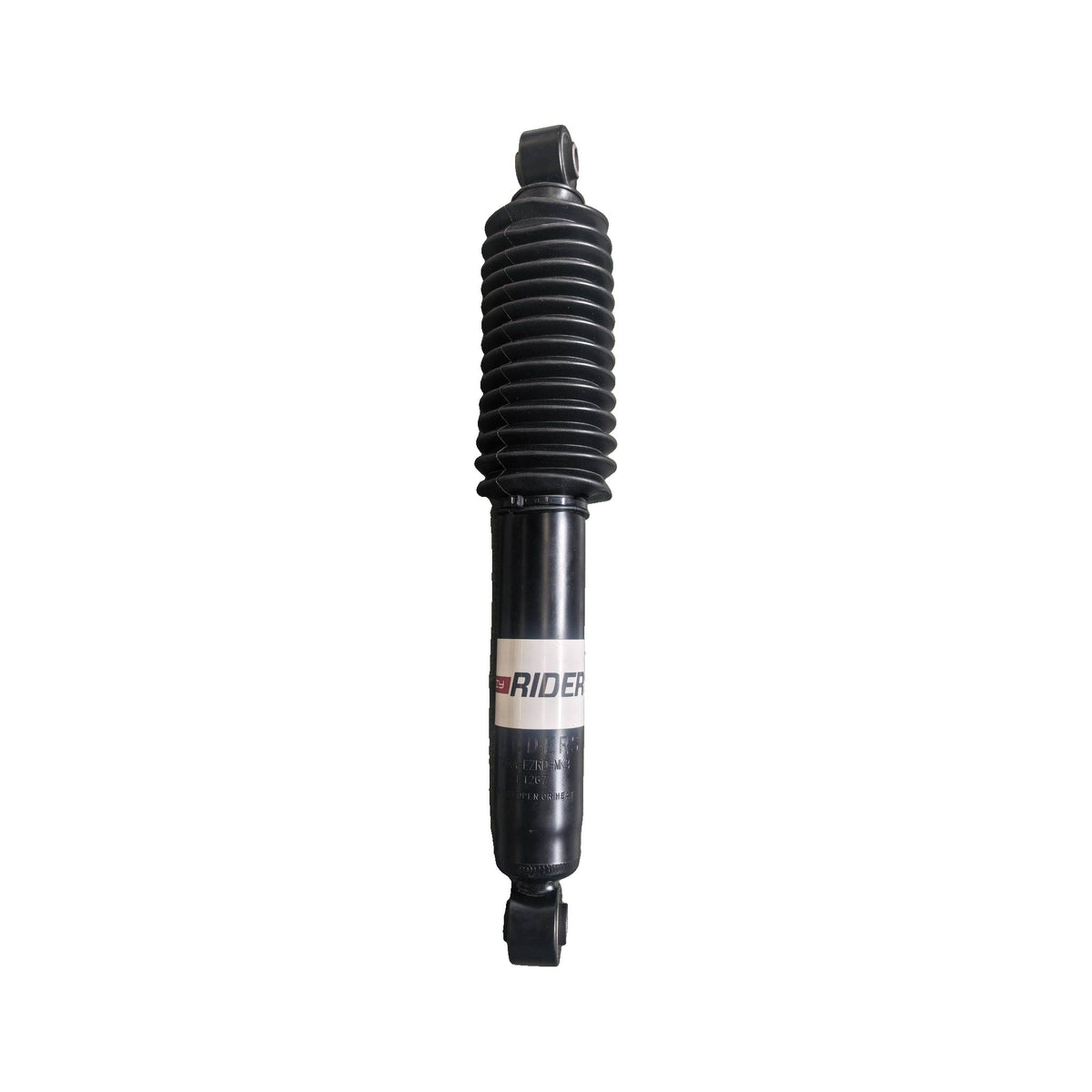

Shock Absorber — RIDER

SKU EZY-000732 Brakes, Suspension, Wheels & Tyres

$200.00 incl. GST

2 in stock

Check fitment
Pickup available at Ezytrail Keysborough HQ, VIC — usually ready in 2-4 days

Pickup availability

Shock Absorber — RIDER

SKU EZY-000732

  • Ezytrail Keysborough HQ, VIC

    Pickup available, usually ready in 2-4 days

    226 Atlantic Drive
    Keysborough VIC 3173
    Australia

    +611300399875
Ships from Melbourne — dispatched in 2–4 business days
30-day returns on unfitted parts

Fits between the trailing arm and the chassis bracket on an independent suspension and damps the coil spring so the van settles after a bump instead of bouncing. Fit it in place of the original shock absorber once it weeps oil or the van wallows on corrugations. Measure the old unit eye centre to eye centre at full extension and full compression, 477 mm and 305 mm, and check the 16 mm eye against the bolt on your mount.

  • 477 mm extended, 305 mm compressed: 172 mm of travel
  • Ø16 mm mounting eye: match to the bolt diameter on your suspension bracket
  • Sold singly, 1.25 kg
  • Model CTRP-SHKA-MK3: quote it when matching the unit you are removing
