RNG-CNCT-MC4Y Solar MC4 Y Connector

SKU EZY-000332 Power & Circuit Control

$9.95 incl. GST

10 in stock

Check fitment
Pickup available at Ezytrail Keysborough HQ, VIC — usually ready in 2-4 days

Pickup availability

RNG-CNCT-MC4Y Solar MC4 Y Connector

SKU EZY-000332

  • Ezytrail Keysborough HQ, VIC

    Pickup available, usually ready in 2-4 days

    226 Atlantic Drive
    Keysborough VIC 3173
    Australia

    +611300399875
Ships from Melbourne — dispatched in 2–4 business days
30-day returns on unfitted parts

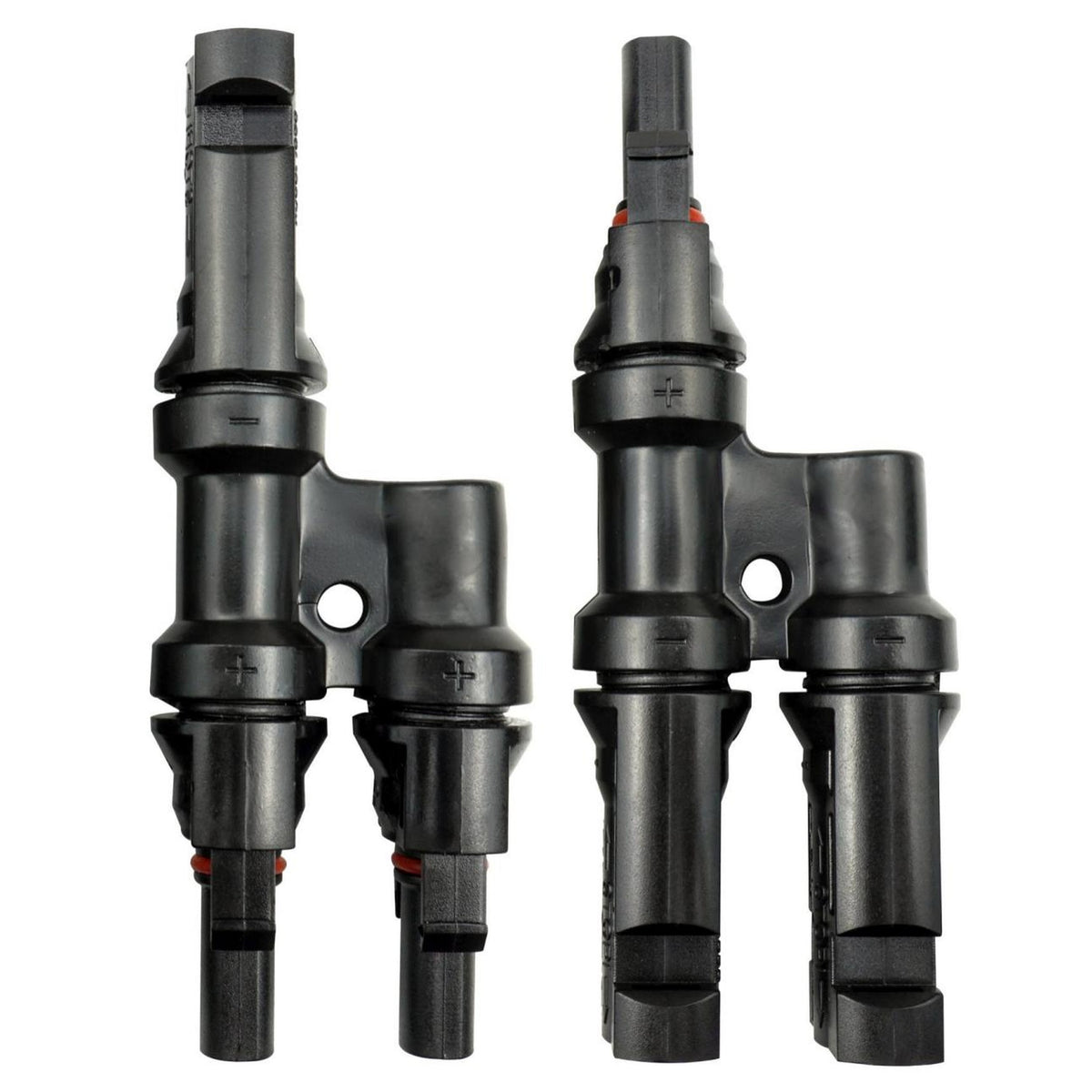

Joins the leads of two roof panels into one cable so they run in parallel down to the solar regulator. Takes the place of the original Y branch connector. Before ordering, look at the plug ends on the old branch so the new one mates the same way with your panel leads.

  • Rated 30 A and 1000 V: add up the current of the panels you are joining and stay under 30 A
  • IP67 sealed, so it can sit on the roof in rain and dust without a cover
  • 4.8 mm mounting hole lets you screw the body down instead of leaving it loose on the roof
  • Body 108 × 40.4 × 12 mm, 0.103 kg
  • Model PV004-T2: match the code moulded on the old connector
