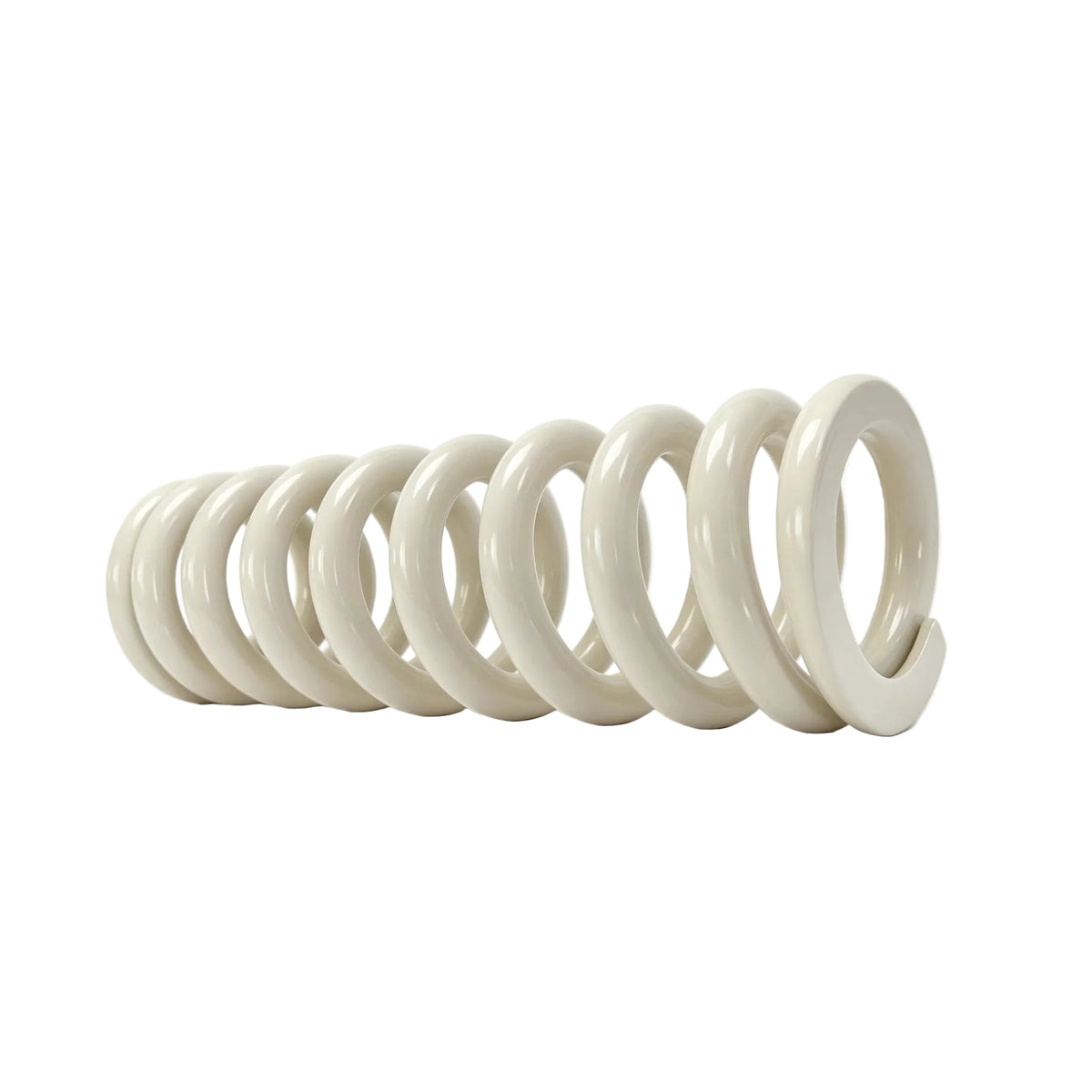

White Suspension Coil Spring — 100 N/mm

SKU EZY-000737 Brakes, Suspension, Wheels & Tyres

$85.00 incl. GST

2 in stock

Check fitment
Pickup available at Ezytrail Keysborough HQ, VIC — usually ready in 2-4 days

Pickup availability

White Suspension Coil Spring — 100 N/mm

SKU EZY-000737

  • Ezytrail Keysborough HQ, VIC

    Pickup available, usually ready in 2-4 days

    226 Atlantic Drive
    Keysborough VIC 3173
    Australia

    +611300399875

Frequently bought together

Total for selected: $85.00
Ships from Melbourne — dispatched in 2–4 business days
30-day returns on unfitted parts

Sits between the trailing arm and the chassis mount on an independent coil suspension and carries the van's weight on that corner. Fits in place of an original spring where the van now sits low or leans on that corner. Before ordering, measure the old spring unloaded: 345 mm tall, 120 mm outer diameter, 18 mm wire, and match the 100 N/mm rate.

  • Spring rate 100 N/mm: compresses 1 mm for every 100 N (about 10 kg) of load
  • 345 mm tall, Ø120 mm outer diameter, Ø18 mm wire
  • Same 100 N/mm rate as the Ø140 × 375 mm spring in this range but shorter and narrower: measure the old spring, not just the rate
  • Supplied as a single spring, 5.58 kg
